How to Measure Timing Belt Size Correctly?
July 28, 2026
Choosing the correct timing belt size is essential for maintaining reliable power transmission, reducing wear, and preventing unexpected equipment downtime. Whether replacing an existing belt or designing a new drive system, accurate measurement ensures proper fit and optimal performance.
The three key dimensions of a timing belt are pitch length, belt width, and tooth profile. Measuring these correctly helps ensure compatibility with pulleys and drive systems.
CHIBOSS manufactures high-quality timing belts for industrial automation, machinery, automotive, and power transmission applications.
An incorrectly sized timing belt can cause:
Belt slipping
Excessive noise
Premature belt wear
Reduced transmission efficiency
Equipment failure
Using the correct belt dimensions improves service life and reduces maintenance costs.
Pitch length is the total length measured along the belt's pitch line rather than the outer surface.
It is the most important specification when selecting a replacement timing belt.
Manufacturers usually express pitch length in millimeters or inches.
Measure the belt across its flat surface from one edge to the other.
Common industrial widths include:
6 mm
9 mm
15 mm
25 mm
50 mm
A wider belt generally provides greater load-carrying capacity.
The tooth profile must match the pulley exactly.
Common timing belt profiles include:
| Tooth Profile | Typical Applications |
| MXL | Precision instruments |
| XL | Light industrial equipment |
| L | General machinery |
| H | Heavy-duty transmission |
| HTD | Industrial automation |
| GT Series | High-performance drives |
| T Series | European machinery |
Using the wrong tooth profile can lead to poor engagement and rapid wear.

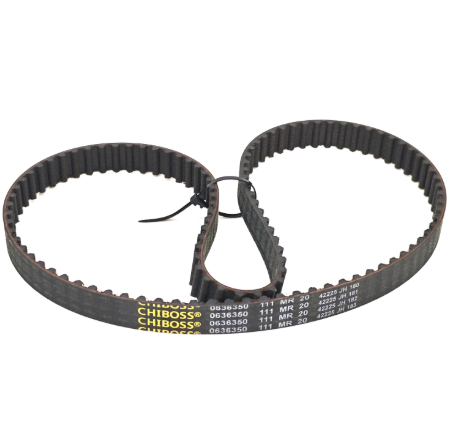

The easiest method is checking the printed code on the existing belt.
For example:
HTD 5M-450-15
This indicates:
Tooth Profile: HTD
Pitch: 5 mm
Pitch Length: 450 mm
Belt Width: 15 mm
If the marking is still readable, this is the fastest and most accurate method.
If the printing has worn off:
Lay the belt flat.
Measure the belt width.
Count the total number of teeth.
Measure the tooth pitch.
Calculate the pitch length.
Formula:
Pitch Length = Tooth Pitch × Number of Teeth
Example:
Tooth Pitch: 8 mm
Number of Teeth: 100
Pitch Length = 800 mm
When the original belt is missing, measure:
Driver pulley diameter
Driven pulley diameter
Center distance between shafts
These dimensions can be used to calculate the correct timing belt size.
Avoid these common errors:
Measuring the outer circumference instead of pitch length
Ignoring the tooth profile
Estimating belt width without precise tools
Ordering based only on belt length
Mixing metric and inch belt systems
Even small measurement errors can result in poor belt performance.
Before ordering a replacement, verify:
Pitch length
Belt width
Tooth profile
Number of teeth
Pulley compatibility
Operating temperature
Load requirements
If possible, compare the new belt with the original before installation.
CHIBOSS provides reliable timing belt solutions for a wide range of industrial applications.
Key advantages include:
High-quality rubber and polyurethane materials
Precise tooth profile manufacturing
Excellent wear resistance
Stable power transmission
Wide range of standard and custom sizes
OEM and customized production services
Whether you need belts for automation equipment, conveyors, machine tools, or industrial drives, CHIBOSS offers dependable products that meet demanding performance requirements.
Accurately measuring a timing belt requires determining pitch length, belt width, and tooth profile. These three dimensions are critical for selecting the correct replacement belt and ensuring efficient power transmission.
By following proper measurement methods and sourcing high-quality products from an experienced manufacturer like CHIBOSS, businesses can reduce maintenance costs, improve equipment reliability, and extend the service life of their drive systems.
