Characteristics and Models of Various Transmission Belts
V-Belt
V-belt is the most widely used, wear-resistant and low-cost.
Classification
Standard V-Belt (Most Common)
Models: Y, Z, A, B, C, D, E
· Y, Z: Micro and low-power household appliances, small motors
· A, B: Machine tools, fans, water pumps (most frequently used)
· C, D, E: High-power, heavy-duty machinery
Narrow V-Belt (High-efficiency Narrow Type, Much Stronger Than Standard V-Belt)
Higher load capacity, smaller size, suitable for high-speed and high-power transmission.Models:
· Standard Width System (Common in Europe): SPZ, SPA, SPB, SPC (power increases in this order)
· Effective Width System (American Standard, Commonly Used): 9N(3V), 15N(5V), 25N(8V) (3V < 5V < 8V)Commonly used in industrial equipment, compressors, machine tools.
Other V-Belt Variants
· Banded V-Belt: Multiple belts connected together, anti-vibration, anti-jumping, for high-power fans/pumps

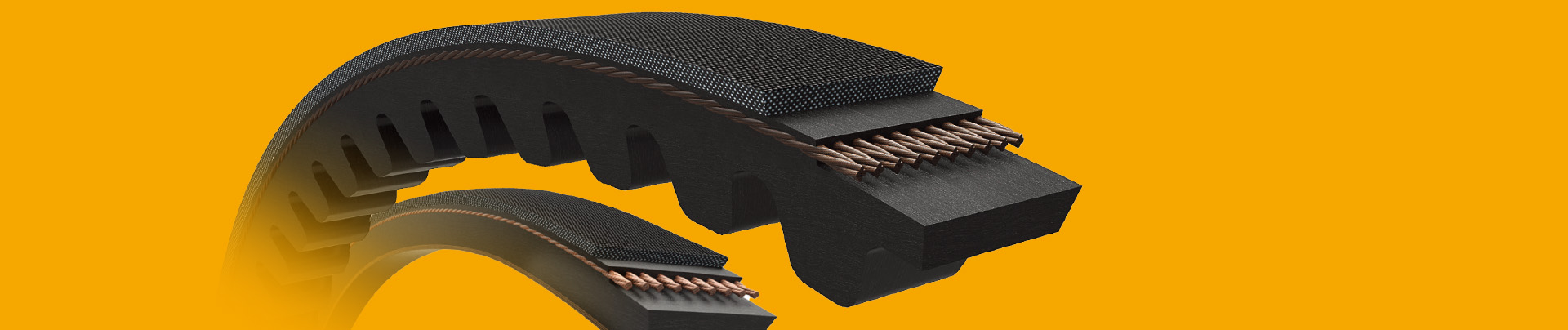

· Cogged V-Belt: Cogged side structure, better flexibility, suitable for smaller pulleys, good heat dissipation
Flat Belt (Mainly for Conveying, Also for Transmission)
Features
· Thin, good flexibility
· For high-speed transmission and light-duty conveying
· Obvious slipping, low load capacity
· Models: Rubber flat belt, nylon canvas flat belt, canvas flat belt
· Applications: Conveyors, textile machines, small transmission devices
Round Belt
Features
· Circular cross-section, good elasticity
· Ultra-light transmission, allows large center distance and small pulleys
· Extremely low load capacity, easy to slipModels: Classified by diameter: Φ2, Φ3, Φ4, Φ5, Φ6...Applications: Small household appliances, toys, printers, light-duty transmission

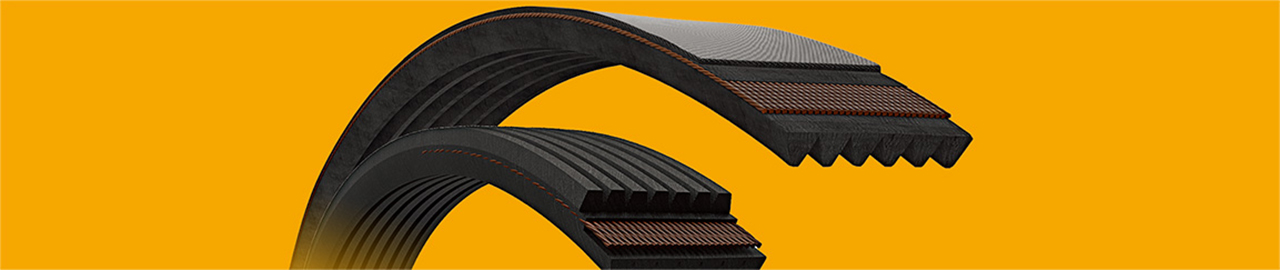

Poly-V Belt (Multi-Ribbed Belt)
Features
· Combination of flat belt and V-belt, with multiple longitudinal ribs on the back
· Good flexibility, low noise, no jumping, stable at high speed
· Suitable for compact spaces, high power, multi-pulley transmission
· Models: PH,PK, PJ, PL, PM (most common)
· PK: Automobiles
· PJ: Light-duty (automotive accessories)
· PL: Medium-duty (machine tools, compressors)
· PM: Heavy-duty
· Typical Applications: Automotive engine accessories, air conditioning pumps, steering pumps, high-speed spindles
·

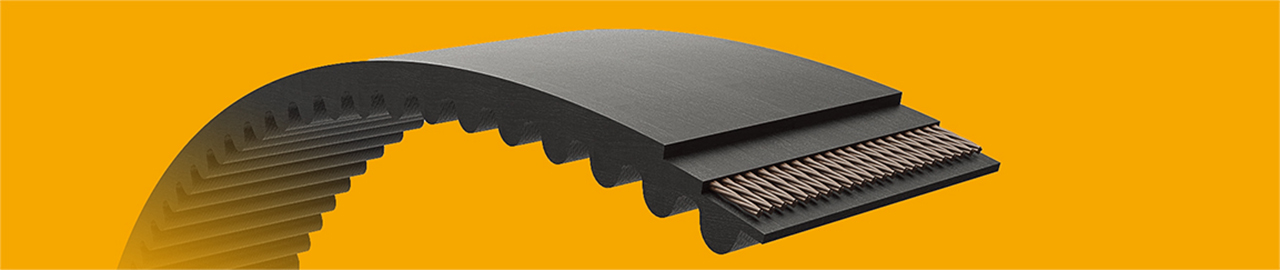

Timing Belt (Toothed Belt) - Only Non-Slip High-Precision Type
Features
· Meshing transmission, no slipping, accurate transmission ratio
· High speed, high power, precise positioning
· High requirements for center distance and installation accuracy
· Fast response, stable transmission
· High transmission efficiency (97% - 99%)
Types
Trapezoidal Tooth
Pitch increases gradually from left to right
· Imperial Trapezoidal Tooth: MXL, XXL, XL, L, H, XH, XXH
· Metric Trapezoidal Tooth: T2.5, T5, T10, T20
· Modified Trapezoidal Tooth: AT5, AT10, AT20
Curvilinear Tooth
· Circular Arc Tooth (HTD/H): H3M, H5M, H8M
· Flat Top Circular Arc Tooth (STPD/S): S3M, S5M, S8M (widely used, also known as high-torque timing belt)
· Concave Parabolic Tooth (R): R3M, R5M, R8M
Applications: CNC machine tools, servo transmission, robots, automotive timing belts, precision conveying
